JSP进阶_EL_JSTL
JSP进阶_EL_JSTL

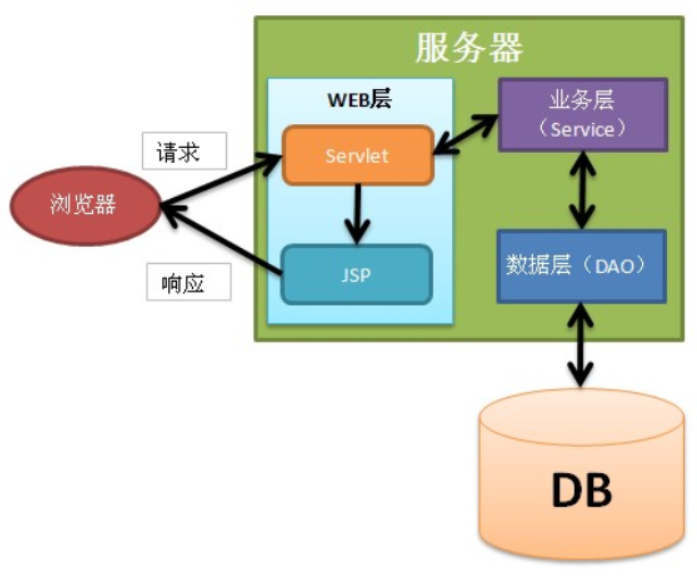

本篇整理 JSP 进阶内容:三大指令、九大内置对象、JSP 动作标签、EL 表达式、JSTL 核心标签,以及 MVC 设计模式与 JavaWeb 三层架构的登录案例升级。
1. JSP 指令
JSP 指令用来设置与整个 JSP 页面相关的属性,语法格式为 <%@指令名 attr1="" attr2="" %>。一般会把 JSP 指令放到 JSP 文件的最上方,但这不是必须的。
常用指令有三个:
| 指令 | 作用 |
|---|---|
page | 定义页面的依赖属性,比如脚本语言、error 页面、缓存需求等 |
include | 包含其他文件 |
taglib | 引入标签库的定义,可以是自定义标签 |
1.1 page 指令
page 指令是最常用的指令,也是属性最多的指令。page 指令没有必须属性,都是可选属性,例如 <%@page %> 不给出任何属性也是可以的。
关于 pageEncoding 和 contentType:
- pageEncoding
- 指定当前 JSP 页面的编码;
- 这个编码是给服务器看的:服务器需要知道当前 JSP 使用的编码,否则无法正确把 JSP 编译成 java 文件;
- 这个编码只需要与真实的页面编码一致即可。
- contentType
- 设置响应字符流的编码;
- 设置 content-type 响应头。
无论是 pageEncoding 还是 contentType,它们的默认值都是 ISO-8859-1,而 ISO-8859-1 无法显示中文,所以 JSP 页面中存在中文时一定要设置这两个属性。两者的关系:
- 当 pageEncoding 和 contentType 只出现一个时,另一个的值与出现的值相同;
- 如果两个都不出现,两个属性的值都是 ISO-8859-1。
import 属性对应 Java 代码中的 import 语句,用来导入包。
1.2 include 指令
- include 指令表示静态包含,目的是把多个 JSP 合并成一个 JSP 文件;
- include 指令只有一个属性
file,指定要包含的页面; - 如果 a.jsp 使用 include 指令包含了 b.jsp,那么在编译 a.jsp 时,会把两个文件合并成一个文件再编译成
.java。
1.3 taglib 指令
taglib 指令用于引入标签库,学习 JSTL 标签时会使用到,后面再讲。
2. JSP 九大内置对象
2.1 简要说明
JSP 内置对象是指在 JSP 中无需创建就可以直接使用的 9 个对象:
| 内置对象(类型) | 说明 |
|---|---|
out(JspWriter) | 等同于 response.getWriter(),用来向客户端发送文本数据 |
config(ServletConfig) | 对应"真身"中的 ServletConfig |
page(当前 JSP 的真身类型) | 当前 JSP 页面的 this,即当前对象 |
pageContext(PageContext) | 页面上下文对象,它是最后一个要讲的域对象 |
exception(Throwable) | 只有在错误页面中才可以使用这个对象 |
request(HttpServletRequest) | 即 HttpServletRequest 类的对象 |
response(HttpServletResponse) | 即 HttpServletResponse 类的对象 |
application(ServletContext) | 即 ServletContext 类的对象 |
session(HttpSession) | 即 HttpSession 类的对象;不是每个 JSP 页面都可以使用,如果在某个 JSP 页面中设置 <%@ page session="false" %>,说明这个页面不能使用 session |
使用情况:
- 极少使用:config、page、exception;
- 不是每个 JSP 页面都可以使用:exception、session。
2.2 pageContext
pageContext 的主要功能:
- 域对象功能;
- 代理其他域对象功能;
- 获取其他内置对象。
2.2.1 域对象功能
pageContext 表示当前页面范围。和其他域对象一样,它有共同的三个方法:
| 操作 | 方法 |
|---|---|
| 存 | void setAttribute(String name, Object value) |
| 取 | Object getAttribute(String name) |
| 删除 | void removeAttribute(String name) |
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>测试Page域对象</title>
</head>
<body>
<%
// 在 page 域中存放数据
pageContext.setAttribute("name", "zhangsan");
%>
<%
// 从 page 域中获取数据
System.out.println(pageContext.getAttribute("name"));
%>
</body>
</html>2.2.2 代理其他域对象
可以使用 pageContext 向 request、session、application 对象中存取数据,"一个顶四个":
| 方法 | 说明 |
|---|---|
void setAttribute(String name, Object value, int scope) | 在指定范围中添加数据 |
Object getAttribute(String name, int scope) | 获取指定范围的数据 |
void removeAttribute(String name, int scope) | 移除指定范围的数据 |
pageContext.setAttribute("x", "X");
pageContext.setAttribute("x", "XX", PageContext.REQUEST_SCOPE);
pageContext.setAttribute("x", "XXX", PageContext.SESSION_SCOPE);
pageContext.setAttribute("x", "XXXX", PageContext.APPLICATION_SCOPE);创建一个向 Session 域存放数据的 Servlet:
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.IOException;
@WebServlet(name = "MServlet", value = "/MServlet")
public class MServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// 获取 Session
HttpSession session = request.getSession();
// 在 Session 域中存放数据
session.setAttribute("name", "lisi");
}
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
doGet(request, response);
}
}创建测试用的 JSP,通过 pageContext 从 session 域中获取数据:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<%
// 通过 pageContext 从 session 域中获取数据
Object name = pageContext.getAttribute("name", PageContext.SESSION_SCOPE);
System.out.println(name);
%>
</body>
</html>Object findAttribute(String name):依次在 page、request、session、application 四个范围查找名称为 name 的数据,找到就停止查找。这说明如果这些范围中存在相同名称的数据,page 范围的优先级最高:
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<html>
<head>
<title>Insert title here</title>
</head>
<body>
<%
pageContext.setAttribute("key", "page_value");
request.setAttribute("key", "request_value");
session.setAttribute("key", "session_value");
application.setAttribute("key", "app_value");
%>
<%
// 全域查找,按 page -> request -> session -> application 的顺序,最终取到 page_value
String value = (String) pageContext.findAttribute("key");
out.print(value);
%>
</body>
</html>2.2.3 获取其他内置对象
一个 pageContext 对象可以当所有内置对象用,即"1 个当 9 个",因为可以使用它获取其他 8 个内置对象:
| 方法 | 说明 |
|---|---|
JspWriter getOut() | 获取 out 内置对象 |
ServletConfig getServletConfig() | 获取 config 内置对象 |
Object getPage() | 获取 page 内置对象 |
ServletRequest getRequest() | 获取 request 内置对象 |
ServletResponse getResponse() | 获取 response 内置对象 |
HttpSession getSession() | 获取 session 内置对象 |
ServletContext getServletContext() | 获取 application 内置对象 |
Exception getException() | 获取 exception 内置对象 |
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<%
// 通过 pageContext 获取 application 对象
System.out.println(pageContext.getServletContext().getContextPath());
%>
</body>
</html>3. JSP 动作标签(了解)
动作标签的作用是简化 Java 脚本。JSP 动作标签是 JavaWeb 内置的动作标签,它们是已经定义好的标签,可以直接使用。
3.1 include 标签
- 语法:
<jsp:include page="相对URL地址" />; - 作用:包含其他 JSP 页面。
与 include 指令的区别:
| 方式 | 包含级别 | 原理 |
|---|---|---|
| include 指令 | 编译级别 | 把当前 JSP 和被包含的 JSP 合并成一个 JSP,再编译成一个 Servlet |
| include 动作标签 | 运行级别 | 当前 JSP 和被包含的 JSP 各自生成 Servlet,执行当前 JSP 的 Servlet 时再去执行被包含 JSP 的 Servlet;与 RequestDispatcher 的 include() 方法相同 |
被包含的 JSP:a.jsp:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<p>11111111111</p>
</body>
</html>b.jsp 通过动作标签包含 a.jsp:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<jsp:include page="a.jsp" />
<p>222222222222</p>
</body>
</html>3.2 forward 标签
forward 标签的作用是请求转发,其效果与 RequestDispatcher.forward() 方法相同。
4. EL 表达式
4.1 概述
EL(Expression Language)即表达式语言,在 JSP 页面中可以直接使用。从 JSP 2.0 开始,EL 用于代替 JSP 脚本做输出,非 Java 开发人员也可以使用。
4.2 EL 表达式使用
EL 的基本用途:
- 用于替换作用域对象的
getAttribute("name"),并把从域中获取的数据进行显示; - EL 用来代替
<%=...%>,<%=...%>代表输出。
两种常用写法:
${scope.name}:获取具体某个作用域中的数据;${name}:获取作用域中的数据,逐级查找(pageContext、request、session、application)。
EL 与 JSP 脚本的区别:
| 写法 | 找不到数据时的返回 |
|---|---|
<%=request.getAttribute("name") %> | 返回 null |
${requestScope.name} | 返回空字符串 "" |
4.2.1 EL 表达式应用(获取基本类型、字符串)
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>el初步</title>
</head>
<body>
<%
// 在各域中存放数据(String 与 Integer)
pageContext.setAttribute("name", "Bob");
request.setAttribute("name", "Zhangsan");
request.setAttribute("age", 10);
session.setAttribute("name", "Jim");
application.setAttribute("name", "Lucy");
%>
<%-- 使用 EL 表达式获取某个域中的数据并在网页上显示,作用域前缀为 xxxScope --%>
<p>${requestScope.name}</p>
<p>${requestScope.age}</p>
<hr/>
<%--
全域查找:
如果没有限定 xxxScope,会按照 pageContext、request、session、application 的顺序进行查找,
最终取到 pageContext 域中的 Bob
--%>
<p>${name}</p>
<hr/>
<%-- JSP 脚本和 EL 表达式在找不到数据时的区别:null 与 "" --%>
<p><%=request.getAttribute("abc")%></p>
<p>${requestScope.abc}</p>
<hr/>
</body>
</html>4.2.2 EL 表达式应用(获取引用类型)
使用 EL 获取作用域中的对象并调用其属性时,只能访问对象的 get 方法,因此实体类必须遵守命名规范来定义属性。
创建实体类:
/**
* 表示 Person 的实体类
*/
public class Person {
private Integer id;
private String name;
private Integer age;
// set、get 方法
// toString 方法
}EL 表达式演示:获取对象属性、数组元素、List 元素和 Map 键值:
<%@ page import="com.qf.entity.Person" %>
<%@ page import="java.util.List" %>
<%@ page import="java.util.ArrayList" %>
<%@ page import="java.util.Map" %>
<%@ page import="java.util.HashMap" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>el表达式处理复杂类型</title>
</head>
<body>
<%
Person p = new Person();
p.setId(100);
p.setName("Tom");
p.setAge(20);
Person p1 = new Person();
p1.setId(200);
p1.setName("zs");
p1.setAge(21);
// 将 Person 对象存放在域当中
request.setAttribute("person", p);
int[] arr = {1, 2, 100, 50};
request.setAttribute("arr", arr);
List<String> names = new ArrayList<>();
names.add("zs");
names.add("ls");
names.add("ww");
request.setAttribute("names", names);
List<Person> persons = new ArrayList<>();
persons.add(p);
persons.add(p1);
request.setAttribute("persons", persons);
Map<String, Object> map = new HashMap<>();
map.put("name", "zs");
map.put("addr", "qd");
request.setAttribute("map", map);
%>
<%--
通过 EL 表达式在页面上显示对象中的属性
前提:属性要有对应的 set 和 get 方法
--%>
<p>${requestScope.person.id}</p>
<p>${requestScope.person.name}</p>
<p>${requestScope.person.age}</p>
<hr/>
<%-- 通过 EL 表达式显示数组中的元素 --%>
<p>${requestScope.arr[3]}</p>
<hr/>
<%-- 显示集合中的元素,集合中存放的是简单类型(基本数据类型 + String) --%>
<p>${names[2]}</p>
<hr/>
<%-- 显示 List、Map 中的元素,集合中存放的是复杂类型 --%>
<p>${persons[0].id}</p>
<p>${persons[0].name}</p>
<p>${persons[0].age}</p>
<hr/>
<p>${map.name}</p>
<p>${map.addr}</p>
<p>${map["addr"]}</p>
<hr/>
</body>
</html>4.3 EL 表达式运算符
| 操作符 | 描述 |
|---|---|
. | 访问一个 Bean 属性或者一个映射条目 |
[] | 访问一个数组或者集合的元素 |
+ | 加 |
- | 减或负 |
* | 乘 |
/ 或 div | 除 |
% 或 mod | 取模 |
== 或 eq | 测试是否相等 |
!= 或 ne | 测试是否不等 |
< 或 lt | 测试是否小于 |
> 或 gt | 测试是否大于 |
<= 或 le | 测试是否小于等于 |
>= 或 ge | 测试是否大于等于 |
&& 或 and | 测试逻辑与 |
|| 或 or | 测试逻辑或 |
! 或 not | 测试取反 |
empty | 测试是否为空值 |
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>el_运算符</title>
</head>
<body>
<%
request.setAttribute("num", 15);
request.setAttribute("name", "");
%>
<%-- EL 算术运算符 --%>
<p>${num + 1}</p>
<p>${num - 1}</p>
<p>${num * 10}</p>
<p>${num / 10}</p>
<p>${num div 10}</p>
<p>${num % 3}</p>
<p>${num mod 3}</p>
<hr/>
<%-- EL 关系运算符 --%>
<p>${num == 15}</p>
<p>${num eq 15}</p><%-- eq 即 equals --%>
<p>${num != 15}</p>
<p>${num ne 15}</p><%-- ne 即 not equals --%>
<p>${num lt 20}</p><%-- lt 即 less than --%>
<p>${num gt 20}</p><%-- gt 即 greater than --%>
<hr/>
<%-- EL 逻辑运算符 --%>
<p>${true or false}</p>
<hr/>
<%-- empty 运算符 --%>
<p>${empty name}</p>
</body>
</html>关于 empty 关键字:
<%
String s1 = "";
pageContext.setAttribute("s1", s1);
String s2 = null;
pageContext.setAttribute("s2", s2);
String s3 = "abcdefg";
pageContext.setAttribute("s3", s3);
List list1 = new ArrayList();
pageContext.setAttribute("list1", list1);
%>
<%-- empty 关键字:只要内容是"空"就返回 true --%>
${empty s1}<br>
${empty s2}<br>
${empty s3}<br>
${empty list1}<br>上述输出的结果依次为 true、true、false、true:空字符串、null、空集合都算"空",有内容的字符串不算。
4.4 EL 的隐式对象
EL 表达式语言定义了 11 个隐式对象:
| 隐含对象 | 描述 |
|---|---|
| pageScope | page 作用域 |
| requestScope | request 作用域 |
| sessionScope | session 作用域 |
| applicationScope | application 作用域 |
| param | request 对象的参数,字符串 |
| paramValues | request 对象的参数,字符串集合 |
| header | HTTP 信息头,字符串 |
| headerValues | HTTP 信息头,字符串集合 |
| initParam | 上下文初始化参数 |
| cookie | Cookie 值 |
| pageContext | 当前页面的 pageContext 域对象 |
其中最常用的是通过 pageContext 拿到 request 再取 contextPath,避免把项目名写死:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<%--
访问服务器某个资源的路径组成:
协议://主机名:端口 http://localhost:8080
项目名:在实际开发中不能写死,要"动"起来
资源的位置
--%>
<%--<a href="/el_jstl/loginServlet?username=bob">登录</a>--%>
<a href="${pageContext.request.contextPath}/loginServlet?username=bob">登录</a>
</body>
</html>使用 EL 表达式修改登录案例。login.jsp:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>登录</title>
</head>
<body>
<%
String errorMsg = (String)request.getAttribute("errorMsg");
if(errorMsg != null) {
%>
<p style="color: red;">${errorMsg}</p>
<%
}
%>
<form action="${pageContext.request.contextPath}/LoginServlet" method="post">
<fieldset style="width: 300px;">
<legend>用户登录</legend>
<p>
<label>账号</label>
<input type="text" name="username" placeholder="请输入用户名" />
</p>
<p>
<label>密码</label>
<input type="password" name="password" placeholder="请输入密码" />
</p>
<p>
<label>验证码</label>
<input type="text" name="code" placeholder="请输入验证码" />
<img src="${pageContext.request.contextPath}/CodeServlet" alt="验证码">
</p>
<p>
<button type="submit">登录</button>
<button type="reset">重置</button>
</p>
</fieldset>
</form>
</body>
</html>success.jsp:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>success</title>
</head>
<body>
<%
String username = (String) session.getAttribute("username");
if(username != null) {
%>
<p>欢迎${username}</p>
<p><a href="${pageContext.request.contextPath}/LogoutServlet">注销</a></p>
<%
} else {
%>
<p>您还没有登录,请先<a href="${pageContext.request.contextPath}/login.jsp">登录</a></p>
<%
}
%>
</body>
</html>5. JSTL
5.1 目前存在的问题
- EL 主要用于从作用域获取数据,虽然可以做运算判断,但得到的是一个结果,只能做展示;
- EL 不存在流程控制,比如 if 判断;
- EL 对于集合只能做单点访问,不能实现遍历操作,比如循环。
5.2 什么是 JSTL
JSTL 是 Apache 对 EL 表达式的扩展(也就是说 JSTL 依赖 EL),它是一种标签语言。JSTL 不是 JSP 的内置标签,使用时需要导包。
5.3 JSTL 的作用
- 可对 EL 获取到的数据进行逻辑操作;
- 与 EL 合作完成数据的展示。
5.4 如何使用 JSTL
- 导入 jar 包:standard.jar 和 jstl.jar;
- 在 JSP 页面引入标签库:
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>。
5.5 JSTL 核心标签
5.5.1 输入输出
out 标签:
value:可以是字符串常量,也可以是 EL 表达式;default:当要输出的内容为 null 时,会输出 default 指定的值。
<!-- 输出字符串 aaa -->
<c:out value="aaa"/>
<!-- 输出域属性 aaa,与 ${aaa} 相同 -->
<c:out value="${aaa}"/>
<!-- 如果 ${aaa} 不存在,那么输出 xxx 字符串 -->
<c:out value="${aaa}" default="xxx"/>set 标签:
<!-- 创建名为 a、值为 hello 的域属性,默认范围为 pageContext -->
<c:set var="a" value="hello"/>
<!-- 通过 scope 指定范围为 session -->
<c:set var="a" value="hello" scope="session"/>remove 标签:
<!-- 删除名为 a 的域属性,默认从 page 域删除 -->
<c:remove var="a"/>
<!-- 删除 page 域中名为 a 的域属性 -->
<c:remove var="a" scope="page"/>案例:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>jstl输入输出</title>
</head>
<body>
<%--
JSTL:增强 EL 表达式的功能,实现复杂的逻辑操作
--%>
<%-- 输出 --%>
<p><c:out value="hello world"/></p>
<p>hello world</p>
<hr/>
<%--
定义变量,相当于 int age = 10;
c:set 是在域对象中存放数据,默认存放在 page 域中
scope:指定数据存放在哪个域中
--%>
<c:set var="name" value="Zhangsan" />
<p>${pageScope.name}</p>
<c:set var="age" value="10" scope="application" />
<p>${age}</p>
</body>
</html>5.5.2 分支结构
if 标签:
<!-- 当条件为 true 时执行标签体内容 -->
<c:if test="${条件}">
hello
</c:if>choose 标签:
<!--
等同于:
if() {
} else if() {
} else if() {
} else if() {
} else {
}
-->
<c:choose>
<c:when test="${条件1}">a</c:when>
<c:when test="${条件2}">b</c:when>
<c:when test="${条件3}">c</c:when>
<c:otherwise>d</c:otherwise>
</c:choose>案例:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>jstl分支结构</title>
</head>
<body>
<%--
Java 中的分支结构:
if() { }
if() { } else { }
if() { } else if() { } else if() { } else { }
使用 JSTL 实现分支结构
--%>
<c:set var="num" value="10" />
<c:if test="${num gt 2}">
${num}大于2是成立的
</c:if>
<hr/>
<%-- 判断是否及格 --%>
<c:set var="score" value="80" />
<c:choose>
<c:when test="${score >= 60}">
<p>及格</p>
</c:when>
<c:otherwise>
<p>不及格</p>
</c:otherwise>
</c:choose>
<hr/>
<c:choose>
<c:when test="${score >= 80}">
<p>优秀</p>
</c:when>
<c:when test="${score >= 70}">
<p>良好</p>
</c:when>
<c:when test="${score >= 60}">
<p>及格</p>
</c:when>
<c:otherwise>
<p>不及格</p>
</c:otherwise>
</c:choose>
</body>
</html>5.5.3 循环结构
forEach 标签,既可以做计数循环,也可以遍历数组和集合:
<!--
计数循环:
var:循环变量
begin:设置循环变量从几开始
end:设置循环变量到几结束
step:设置步长,等同于 Java 中的 i++ 或 i+=2,默认为 1
-->
<c:forEach var="i" begin="1" end="10" step="1">
${i}
</c:forEach>
<!--
遍历数组、集合:
items:指定要循环的对象,它可以是一个数组或一个集合
var:把数组或集合中的每个元素赋值给 var 指定的变量
可以使用 varStatus 来创建循环状态变量:
count:循环元素的个数
index:循环元素的下标
first:是否为第一个元素
last:是否为最后一个元素
current:当前元素
-->
<c:forEach items="${strs}" var="str">
${str}<br/>
</c:forEach>案例:
<%@ page import="java.util.List" %>
<%@ page import="java.util.ArrayList" %>
<%@ page import="com.qf.entity.Person" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>JSTL循环结构</title>
</head>
<body>
<%--
循环:反复做某件事情
1. 输出 1 2 3 ... 5,相当于
for(int i = 1; i <= 5; i++) {
System.out.println(i);
}
--%>
<c:forEach var="i" begin="1" end="5" step="1">
<p>${i}</p>
</c:forEach>
<hr/>
<%--
计算 2+4+6+...+100,相当于
int sum = 0;
for(int i = 2; i <= 100; i += 2) {
sum = sum + i;
}
--%>
<c:set var="sum" value="0" />
<c:forEach var="i" begin="2" end="100" step="2">
<c:set var="sum" value="${sum + i}" />
</c:forEach>
<p>${sum}</p>
<hr/>
<%--
通过 JSTL 遍历一个集合,在 h1 标题中显示
假设集合从 Servlet 中保存到 request 域中,然后转发到该页面
--%>
<%
List<String> list = new ArrayList<>();
list.add("1111");
list.add("2222");
list.add("333");
list.add("******");
request.setAttribute("list", list);
%>
<%--
items:表示被遍历的集合
var:每一次被遍历到的元素
相当于 for(String item : list) { }
--%>
<c:forEach items="${list}" var="item">
<h1>${item}</h1>
</c:forEach>
<hr/>
<%
// 模拟从数据库中查询到的 Person 集合
List<Person> persons = new ArrayList<>();
Person p = new Person();
p.setId(100);
p.setName("Tom");
p.setAge(20);
Person p1 = new Person();
p1.setId(200);
p1.setName("zs");
p1.setAge(21);
persons.add(p);
persons.add(p1);
request.setAttribute("persons", persons);
%>
<table border="1">
<tr>
<th>id</th>
<th>name</th>
<th>age</th>
<th colspan="2">opt</th>
</tr>
<c:forEach items="${persons}" var="p">
<tr>
<td>${p.id}</td>
<td>${p.name}</td>
<td>${p.age}</td>
<td><a href="${pageContext.request.contextPath}/xxxServlet?id=${p.id}">修改</a></td>
<td><a href="${pageContext.request.contextPath}/aaaServlet?id=${p.id}">删除</a></td>
</tr>
</c:forEach>
</table>
</body>
</html>5.6 登录案例升级
使用 EL 和 JSTL 重写登录相关页面,去掉页面中的 Java 脚本判断。修改 login.jsp:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>登录</title>
</head>
<body>
<p style="color: red;">${errorMsg}</p>
<form action="${pageContext.request.contextPath}/LoginServlet" method="post">
<fieldset style="width: 300px;">
<legend>用户登录</legend>
<p>
<label>账号</label>
<input type="text" name="username" placeholder="请输入用户名" />
</p>
<p>
<label>密码</label>
<input type="password" name="password" placeholder="请输入密码" />
</p>
<p>
<label>验证码</label>
<input type="text" name="code" placeholder="请输入验证码" />
<img src="${pageContext.request.contextPath}/CodeServlet" alt="验证码">
</p>
<p>
<button type="submit">登录</button>
<button type="reset">重置</button>
</p>
</fieldset>
</form>
</body>
</html>修改 success.jsp,用 c:choose 替代脚本判断:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>success</title>
</head>
<body>
<c:choose>
<c:when test="${not empty username}">
<p>欢迎${username}</p>
<p><a href="${pageContext.request.contextPath}/LogoutServlet">注销</a></p>
</c:when>
<c:otherwise>
<p>您还没有登录,请先<a href="${pageContext.request.contextPath}/login.jsp">登录</a></p>
</c:otherwise>
</c:choose>
</body>
</html>6. MVC 设计模式
6.1 经典的 MVC
MVC 是软件工程中的一种架构模式,是一种软件设计思想:将数据操作、页面展示、业务逻辑分为三个层级(模块),独立完成、相互调用。MVC 并不是 Java 独有的,现在几乎所有的 B/S 架构都采用了 MVC 模式。三个层级如下:
| 层级 | 职责 |
|---|---|
| 视图 View | 用户看到并与之交互的界面,比如 HTML(静态资源)、JSP(动态资源)等 |
| 控制器 Controller | 控制请求的处理逻辑,对请求进行处理,负责流程跳转(转发和重定向) |
| 模型 Model | 对客观世界的一种代表和模拟(业务模拟、对象模拟) |
MVC 的优点:
- 低耦合性:模块与模块之间的关联性不强,不与某一种具体实现产生密不可分的关联性;
- 高维护性:基于低耦合性,可做到不同层级的功能模块灵活更换、插拔;
- 高重用性:相同的数据库操作可以服务于不同的业务处理,将数据作为独立模块,提高重用性。
6.2 JavaWeb 经典三层框架
| 层 | 职责 |
|---|---|
| Web 层 | 包含 JSP 和 Servlet 等与 Web 相关的内容 |
| 业务层(Service) | 不包含 JavaWeb API,只关心业务逻辑 |
| 数据层(Dao) | 封装了对数据库的访问细节,进行最细粒度的增删改查操作 |

调用关系为:Web 层 -> 业务层(Service)-> 数据层(Dao)-> DB。
- 业务处理从前到后,开发时要从后向前进行;
- 关于业务:例如转账,业务层就是对 DAO 层方法的组合。
注意事项:
- 业务层(Service)不要出现 JavaWeb API:业务层代码是可重用的,甚至可以应用到非 Web 环境中;
- 业务层不要出现 JDBC 相关的 API;
- JavaBean 作为实体类贯穿 Web 层、业务层、数据层,各层之间通过 JavaBean 或者 JavaBean 的组合进行数据交互。
6.3 基于 JavaWeb 三层架构升级登录案例
准备工作:
- 建库建表;
- 新建项目;
- 拷贝 jar 包到项目的 WEB-INF 下 lib 目录;
- 准备 jdbc 配置文件,放置在 src 下;
- JdbcUtils 工具类放在 utils 包下。
6.3.1 建库建表
SQL 语句如下:
CREATE DATABASE webtest;
USE webtest;
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
id int(11) NOT NULL AUTO_INCREMENT,
username varchar(20),
password varchar(20),
PRIMARY KEY (id)
);
INSERT INTO `user` VALUES (1, 'zhangsan', '123456');
INSERT INTO `user` VALUES (2, 'lisi', '123456');对应的实体类 User:
public class User {
private Integer id;
private String username;
private String password;
// set 和 get 方法
// toString 方法
}6.3.2 Dao 层
Dao 层接口:
import com.qfedu.entity.User;
import java.sql.SQLException;
public interface UserDao {
User findByUsernameAndPassword(String username, String password) throws SQLException;
}Dao 层接口实现类:
import com.qfedu.dao.UserDao;
import com.qfedu.entity.User;
import com.qfedu.utils.JdbcUtils;
import org.apache.commons.dbutils.QueryRunner;
import org.apache.commons.dbutils.handlers.BeanHandler;
import java.sql.SQLException;
public class UserDaoImpl implements UserDao {
@Override
public User findByUsernameAndPassword(String username, String password) throws SQLException {
String sql = "select * from user where username=? and password=?";
Object[] params = {username, password};
QueryRunner qr = new QueryRunner(JdbcUtils.getDataSource());
User user = qr.query(sql, new BeanHandler<User>(User.class), params);
return user;
}
}6.3.3 Service 层
Service 层接口:
import com.qfedu.entity.User;
public interface UserService {
User login(String username, String password);
}Service 层实现类:
import com.qfedu.dao.UserDao;
import com.qfedu.dao.impl.UserDaoImpl;
import com.qfedu.entity.User;
import com.qfedu.service.UserService;
import java.sql.SQLException;
public class UserServiceImpl implements UserService {
private UserDao userDao = new UserDaoImpl();
@Override
public User login(String username, String password) {
User user = null;
try {
user = userDao.findByUsernameAndPassword(username, password);
} catch (SQLException e) {
e.printStackTrace();
}
return user;
}
}6.3.4 Servlet
用于登录验证的 Servlet:
import com.qfedu.entity.User;
import com.qfedu.service.UserService;
import com.qfedu.service.impl.UserServiceImpl;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.IOException;
@WebServlet(name = "LoginServlet", value = "/LoginServlet")
public class LoginServlet extends HttpServlet {
private UserService userService = new UserServiceImpl();
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// 获取登录信息
String username = request.getParameter("username");
String password = request.getParameter("password");
String code = request.getParameter("code");
HttpSession session = request.getSession();
// 使用用户输入的验证码和生成的验证码进行比较
String generateCode = (String) session.getAttribute("generateCode");
// 忽略大小写比较
if (generateCode.equalsIgnoreCase(code)) {
// 登录验证
User user = userService.login(username, password);
if (user != null) {
// 将成功登录的用户信息放在 Session 中
session.setAttribute("user", user);
request.getRequestDispatcher("/success.jsp").forward(request, response);
} else {
request.setAttribute("errorMsg", "用户名或密码错误,请重新登录");
request.getRequestDispatcher("/login.jsp").forward(request, response);
}
} else {
request.setAttribute("errorMsg", "验证码错误,请重新登录...");
request.getRequestDispatcher("/login.jsp").forward(request, response);
}
}
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
doGet(request, response);
}
}用于生成验证码的 Servlet:
import cn.dsna.util.images.ValidateCode;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
@WebServlet(name = "CodeServlet", value = "/CodeServlet")
public class CodeServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// 生成验证码
ValidateCode codeImg = new ValidateCode(200, 30, 4, 5);
String code = codeImg.getCode();
System.out.println(code);
// 将生成的验证码存放在 session 中
request.getSession().setAttribute("generateCode", code);
// 发送给浏览器
codeImg.write(response.getOutputStream());
}
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
doGet(request, response);
}
}用于退出登录的 Servlet:
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
@WebServlet(name = "LogoutServlet", value = "/LogoutServlet")
public class LogoutServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// 让 session 失效
request.getSession().invalidate();
// 重定向到 login.jsp
response.sendRedirect(request.getContextPath() + "/login.jsp");
}
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
doGet(request, response);
}
}6.3.5 相关页面
登录页面 login.jsp。注意这个页面中引入了 jQuery 用于实现单击刷新验证码,如果 jQuery 加载不能运行成功,删除 out 目录后重试:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<head>
<title>登录</title>
<script src="${pageContext.request.contextPath}/js/jquery-3.4.1.min.js"></script>
<script>
$(function () {
// 单击验证码图片,刷新验证码
$("#codeImg").click(function () {
var date = new Date();
$("#codeImg").prop("src", "${pageContext.request.contextPath}/CodeServlet?timeStamp=" + date.getTime());
});
});
</script>
</head>
<body>
<p style="color: red;">${errorMsg}</p>
<form action="${pageContext.request.contextPath}/LoginServlet" method="post">
<fieldset style="width: 300px;">
<legend>用户登录</legend>
<p>
<label>账号</label>
<input type="text" name="username" placeholder="请输入用户名" />
</p>
<p>
<label>密码</label>
<input type="password" name="password" placeholder="请输入密码" />
</p>
<p>
<label>验证码</label>
<input type="text" name="code" placeholder="请输入验证码" />
<img id="codeImg" src="${pageContext.request.contextPath}/CodeServlet" alt="验证码" />
</p>
<p>
<button type="submit">登录</button>
<button type="reset">重置</button>
</p>
</fieldset>
</form>
</body>
</html>成功页面 success.jsp:
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>success</title>
</head>
<body>
<c:choose>
<c:when test="${not empty user}">
<p>欢迎${user.username}</p>
<p><a href="${pageContext.request.contextPath}/LogoutServlet">注销</a></p>
</c:when>
<c:otherwise>
<p>您还没有登录,请先<a href="${pageContext.request.contextPath}/login.jsp">登录</a></p>
</c:otherwise>
</c:choose>
</body>
</html>7. 本章小结
- JSP 三大指令中,page 控制页面属性(重点注意 pageEncoding 与 contentType 的关系),include 是编译期静态包含,taglib 引入标签库;
- 九大内置对象中,pageContext"一个顶四个"(代理其他域对象),又能获取其他内置对象(1 个当 9 个),是理解 JSP 的关键;
- EL 表达式替代
<%= %>做输出,xxxScope限定域、不加前缀则全域查找,找不到时返回""而非 null; - EL 只能取值和运算,流程控制与集合遍历由 JSTL 完成:
c:if/c:choose做分支,c:forEach做循环; - MVC 把展示、控制、模型分层,JavaWeb 三层架构对应 Web 层(Servlet/JSP)、业务层(Service)、数据层(Dao),开发顺序从数据层向上,JavaBean 贯穿各层。
