SpringSecurity通用权限管理系统

2026/9/12大约 21 分钟框架学习SpringMVC

SpringSecurity通用权限管理系统

本篇以一个基于 RBAC 模型的通用权限管理系统为例，整理 SpringSecurity 的认证与授权：从项目搭建、建库建表、配置类编写，到基于内存和基于数据库两种登录认证方式，以及基于角色的细粒度权限控制。

1. 为什么需要权限

一个项目为什么需要添加权限，权限有什么用？

一般一个稍微复杂一点的项目或者系统，都会涉及到权限部分，权限部分可以说是每一个系统的基础部分。

权限：不同人进入系统看到、操作的东西不一样。可以用演员和导演来类比：

  • 演员（角色）→ 演戏（权限）；
  • 导演（角色）→ 演戏（权限）、写剧本（权限）。

如何完成一个权限系统？常见两种路线：

  • 自己手写一个权限系统（对程序员门槛要高一点）；
  • 使用权限框架：Shiro 或 SpringSecurity。

2. Shiro 和 SpringSecurity 的区别

维度ShiroSpringSecurity
功能范围功能较少，主要覆盖认证和授权除认证授权外，对分布式、OAuth 认证、单点登录都有较友好的支持
社区支持一般社区讨论更丰富，支持更好
与 Spring 的整合需要额外适配与 Spring 无缝衔接，在 SpringBoot 流行的当下更能发挥其特点
权限控制粒度相对较粗更细粒度，数据访问完全可以在 Controller 层控制
学习成本简单，功能没有那么多，容易学稍微复杂一点

3. SpringSecurity 的认识

Spring Security 基于 Spring 框架，提供了一套 Web 应用安全性的完整解决方案。一般来说，Web 应用的安全性包括用户认证（Authentication）和用户授权（Authorization）两个部分。

  • 用户认证：验证某个用户是否为系统中的合法主体，也就是说用户能否访问该系统。用户认证一般要求用户提供用户名和密码，系统通过校验用户名和密码来完成认证过程。
  • 用户授权：验证某个用户是否有权限执行某个操作。在一个系统中，不同用户所具有的权限是不同的。

权限框架的核心就是两件事：用户认证（Authentication）和用户授权（Authorization）。

3.1 RBAC

用户的认证和用户的授权在这里都是基于 RBAC 的。什么是 RBAC？下面来认识一下。

3.1.1 什么是 RBAC

RBAC 是基于角色的访问控制（Role-Based Access Control）的缩写。在 RBAC 中，权限与角色相关联，用户通过成为适当角色的成员而得到这些角色的权限，这就极大地简化了权限的管理。

3.1.2 RBAC 的关键字

关键字含义
角色（Role）为了对许多拥有相似权限的用户进行分类管理而定义的概念，比如管理员、普通用户、访客
权限（Permission）具体的操作，比如新增用户、修改用户、删除用户操作等
用户（User）操作的个体，说白了就是指人
资源（Resource）具体的内容东西

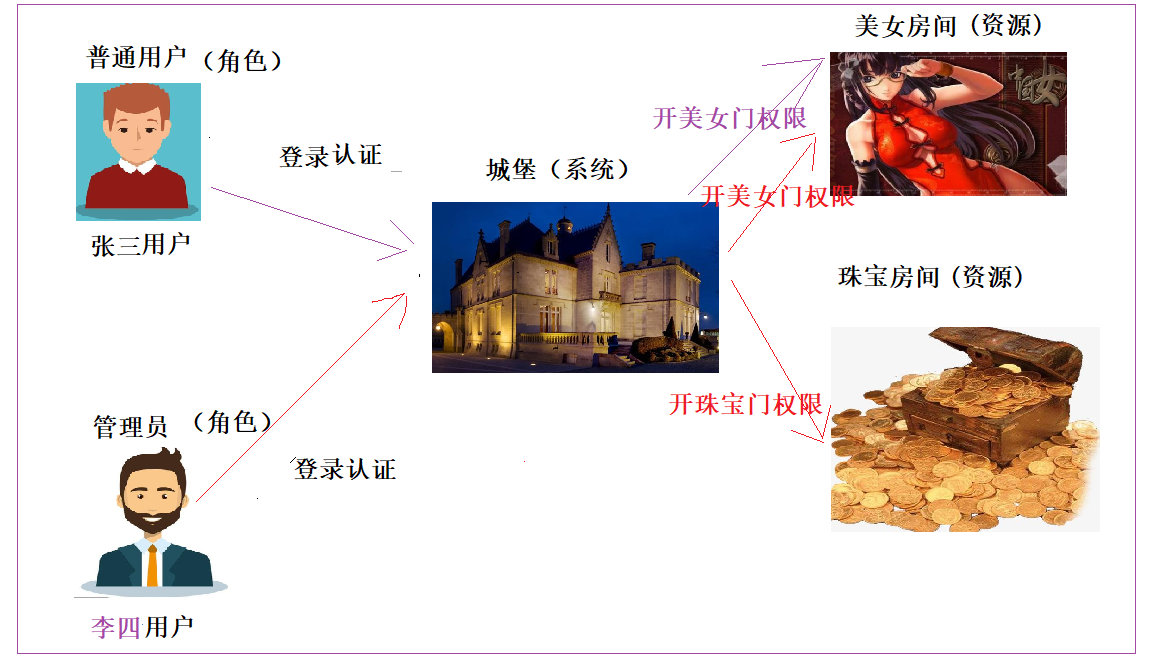

RBAC 举例

3.1.3 RBAC 关键字的关系

  • 用户和角色：多对多关系（多个用户可以拥有一个角色，一个角色可以赋给多个用户）——建一个中间表；
  • 角色和权限：多对多关系（多个权限可以属于一个角色，一个角色可以拥有多个权限）——建一个中间表；
  • 权限和资源：可以是一对一，也可以是一对多（一个权限对应一个资源，也可以一个权限对应多个资源）。

3.2 数据库表结构

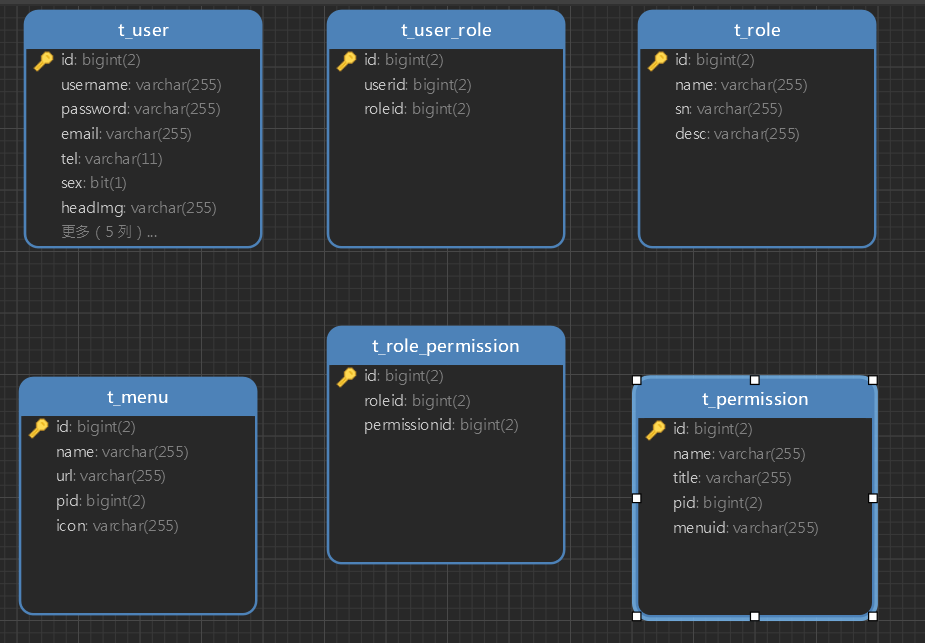

RBAC 表关系

4. 项目搭建

4.1 系统的技术结构

  • 后端：Spring、SpringMVC、SpringSecurity、MyBatis、MyBatis PageHelper、JSP；
  • 前端：jQuery、Bootstrap、Art-template；
  • 数据库：MySQL；
  • 构建工具：Maven。

4.2 建库建表

  • 创建数据库 ssm_security；
  • 运行下面的 SQL 脚本（建议直接导入 SQL 脚本）。
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for t_menu
-- ----------------------------
DROP TABLE IF EXISTS `t_menu`;
CREATE TABLE `t_menu`  (
  `id` bigint(2) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `url` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `pid` bigint(2) NULL DEFAULT NULL,
  `icon` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 53 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_menu
-- ----------------------------
INSERT INTO `t_menu` VALUES (1, '系统管理', NULL, NULL, 'mdi mdi-file-outline');
INSERT INTO `t_menu` VALUES (2, '用户维护', 'user/index', 1, NULL);
INSERT INTO `t_menu` VALUES (3, '角色维护', 'role/index', 1, NULL);
INSERT INTO `t_menu` VALUES (4, '权限维护', 'permission/index', 1, NULL);
INSERT INTO `t_menu` VALUES (5, '菜单维护', 'menu/index', 1, NULL);
INSERT INTO `t_menu` VALUES (20, '报表管理', NULL, NULL, 'mdi mdi-file-chart');
INSERT INTO `t_menu` VALUES (21, '报表列表', 'report/index', 20, '');
INSERT INTO `t_menu` VALUES (22, '日志管理', NULL, NULL, 'mdi mdi-equal-box ');
INSERT INTO `t_menu` VALUES (23, '日志列表', 'log/index', 22, '');
INSERT INTO `t_menu` VALUES (37, '图书管理', NULL, NULL, 'mdi mdi-locker-multiple');
INSERT INTO `t_menu` VALUES (38, '图书列表', 'book/index', 37, '');
INSERT INTO `t_menu` VALUES (39, '图书借阅', 'book/brrow', 37, '');
INSERT INTO `t_menu` VALUES (40, '图书归还', 'book/returnBook', 37, '');
INSERT INTO `t_menu` VALUES (41, '图书入库', 'book/addPage', 37, '');
INSERT INTO `t_menu` VALUES (42, '借阅记录', 'book/history', 37, '');
INSERT INTO `t_menu` VALUES (44, '测试管理', NULL, NULL, 'mdi mdi-account-card-details');
INSERT INTO `t_menu` VALUES (46, '测试列表1', 'test/index', 44, '');
INSERT INTO `t_menu` VALUES (51, '父级管理1', '', NULL, 'mdi mdi-account-circle');
INSERT INTO `t_menu` VALUES (52, '子级列表3', 'zj3/index', 51, '');

-- ----------------------------
-- Table structure for t_permission
-- ----------------------------
DROP TABLE IF EXISTS `t_permission`;
CREATE TABLE `t_permission`  (
  `id` bigint(2) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `title` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `pid` bigint(2) NULL DEFAULT NULL,
  `menuid` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 53 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_permission
-- ----------------------------
INSERT INTO `t_permission` VALUES (1, 'user', '用户模块', 0, '2');
INSERT INTO `t_permission` VALUES (7, 'role', '角色模块', 0, '3');
INSERT INTO `t_permission` VALUES (8, 'role:add', '新增角色', 7, NULL);
INSERT INTO `t_permission` VALUES (9, 'role:delete', '删除角色', 7, NULL);
INSERT INTO `t_permission` VALUES (10, 'role:get', '查询角色', 7, NULL);
INSERT INTO `t_permission` VALUES (11, 'role:update', '修改角色', 7, NULL);
INSERT INTO `t_permission` VALUES (13, 'menu', '菜单管理', 0, '5');
INSERT INTO `t_permission` VALUES (14, 'menu:add', '新增菜单', 13, NULL);
INSERT INTO `t_permission` VALUES (15, 'user:add', '用户新增', 1, NULL);
INSERT INTO `t_permission` VALUES (16, 'user:delete', '用户删除', 1, NULL);
INSERT INTO `t_permission` VALUES (17, 'user:get', '用户查询', 1, NULL);
INSERT INTO `t_permission` VALUES (18, 'user:update', '用户更新', 1, NULL);
INSERT INTO `t_permission` VALUES (19, 'menu:delete', '菜单删除', 13, NULL);
INSERT INTO `t_permission` VALUES (20, 'menu:query', '菜单查询', 13, NULL);
INSERT INTO `t_permission` VALUES (21, 'menu:get', '菜单获取', 13, NULL);
INSERT INTO `t_permission` VALUES (22, 'permission', '权限列表', 0, '4');
INSERT INTO `t_permission` VALUES (24, 'student', '学生列表', 0, '11');
INSERT INTO `t_permission` VALUES (29, 'report', '报表列表', 0, '21');
INSERT INTO `t_permission` VALUES (30, 'log', '日志列表', 0, '23');
INSERT INTO `t_permission` VALUES (41, 'book:list', '图书列表', 0, '38');
INSERT INTO `t_permission` VALUES (42, 'book:brrow', '图书借阅', 0, '39');
INSERT INTO `t_permission` VALUES (43, 'book:return', '图书归还', 0, '40');
INSERT INTO `t_permission` VALUES (44, 'book:add', '图书入库', 0, '41');
INSERT INTO `t_permission` VALUES (45, 'book:history', '借阅记录', 0, '42');
INSERT INTO `t_permission` VALUES (46, 'test:list', '测试列表1', 0, '46');
INSERT INTO `t_permission` VALUES (49, 'test:add1', '新增测试1', 46, NULL);
INSERT INTO `t_permission` VALUES (50, 'fj', '子级列表1', 0, '49');
INSERT INTO `t_permission` VALUES (51, 'zj', '子级列表1', 0, '50');
INSERT INTO `t_permission` VALUES (52, 'zj2', '子级列表2', 0, '52');

-- ----------------------------
-- Table structure for t_role
-- ----------------------------
DROP TABLE IF EXISTS `t_role`;
CREATE TABLE `t_role`  (
  `id` bigint(2) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `sn` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `desc` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_role
-- ----------------------------
INSERT INTO `t_role` VALUES (1, '管理员', NULL, NULL);
INSERT INTO `t_role` VALUES (2, '老师权限', NULL, NULL);
INSERT INTO `t_role` VALUES (3, '学生权限', '', '<p>学生权限</p>\n');
INSERT INTO `t_role` VALUES (4, '测试权限', '', '<![CDATA[<p>测试权限</p>\n]]>');

-- ----------------------------
-- Table structure for t_role_permission
-- ----------------------------
DROP TABLE IF EXISTS `t_role_permission`;
CREATE TABLE `t_role_permission`  (
  `id` bigint(2) NOT NULL AUTO_INCREMENT,
  `roleid` bigint(2) NULL DEFAULT NULL,
  `permissionid` bigint(2) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 454 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_role_permission
-- ----------------------------
INSERT INTO `t_role_permission` VALUES (232, 3, 23);
INSERT INTO `t_role_permission` VALUES (237, 3, 29);
INSERT INTO `t_role_permission` VALUES (238, 2, 23);
INSERT INTO `t_role_permission` VALUES (244, 2, 29);
INSERT INTO `t_role_permission` VALUES (268, 4, 29);
INSERT INTO `t_role_permission` VALUES (269, 4, 30);
INSERT INTO `t_role_permission` VALUES (270, 4, 46);
INSERT INTO `t_role_permission` VALUES (431, 1, 1);
INSERT INTO `t_role_permission` VALUES (432, 1, 7);
INSERT INTO `t_role_permission` VALUES (433, 1, 8);
INSERT INTO `t_role_permission` VALUES (434, 1, 9);
INSERT INTO `t_role_permission` VALUES (435, 1, 10);
INSERT INTO `t_role_permission` VALUES (436, 1, 11);
INSERT INTO `t_role_permission` VALUES (437, 1, 13);
INSERT INTO `t_role_permission` VALUES (438, 1, 14);
INSERT INTO `t_role_permission` VALUES (439, 1, 15);
INSERT INTO `t_role_permission` VALUES (440, 1, 16);
INSERT INTO `t_role_permission` VALUES (441, 1, 17);
INSERT INTO `t_role_permission` VALUES (442, 1, 18);
INSERT INTO `t_role_permission` VALUES (443, 1, 19);
INSERT INTO `t_role_permission` VALUES (444, 1, 20);
INSERT INTO `t_role_permission` VALUES (445, 1, 21);
INSERT INTO `t_role_permission` VALUES (446, 1, 22);
INSERT INTO `t_role_permission` VALUES (447, 1, 29);
INSERT INTO `t_role_permission` VALUES (448, 1, 30);
INSERT INTO `t_role_permission` VALUES (449, 1, 41);
INSERT INTO `t_role_permission` VALUES (450, 1, 42);
INSERT INTO `t_role_permission` VALUES (451, 1, 43);
INSERT INTO `t_role_permission` VALUES (452, 1, 44);
INSERT INTO `t_role_permission` VALUES (453, 1, 45);

-- ----------------------------
-- Table structure for t_user
-- ----------------------------
DROP TABLE IF EXISTS `t_user`;
CREATE TABLE `t_user`  (
  `id` bigint(2) NOT NULL AUTO_INCREMENT,
  `username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `email` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `tel` varchar(11) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `sex` bit(1) NULL DEFAULT NULL,
  `headImg` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `createTime` datetime(0) NULL DEFAULT NULL,
  `stunum` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `type` bigint(2) NULL DEFAULT NULL,
  `classesid` bigint(2) NULL DEFAULT NULL,
  `courseid` bigint(2) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 56 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_user
-- ----------------------------
INSERT INTO `t_user` VALUES (1, 'admin', '$2a$10$YITYi7HjqT2gh8jEF6eyquR/Og0qmYBNT8cQLaEjjS92jcZHwsI9G', 'admin@qq.com', '18000010002', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-05-15 13:49:07', NULL, 1, NULL, NULL);
INSERT INTO `t_user` VALUES (2, 'admin2', '$2a$10$YITYi7HjqT2gh8jEF6eyquR/Og0qmYBNT8cQLaEjjS92jcZHwsI9G', 'test112244@qq.com', '18000020003', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-05-13 13:49:11', NULL, 1, NULL, NULL);
INSERT INTO `t_user` VALUES (17, 't1', '$2a$10$t7K//qDwIbaPGt6fiRVL.eXeFHBHtF4aON2VGwd3u.pOwvH8AzTBe', 't1@qq.com', '18800030005', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-06-02 15:04:05', NULL, 2, 10, NULL);
INSERT INTO `t_user` VALUES (18, 't2', '$2a$10$yPSGzDtZevO/O9LwJVFteOJJywpJXIMW2FZJdMHAQukTxul3WCVWG', 't2@qq.com', '18800040006', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-06-02 15:06:08', NULL, 2, 9, NULL);
INSERT INTO `t_user` VALUES (19, 't611', '$2a$10$uMG5QlQE3n67AFQDmpPZJ.ucP6cgIGFLHnBnWMyoCcVevcTZ8q/Yu', 't611@qq.com', '18100010002', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-06-12 22:49:42', NULL, 2, 6, NULL);
INSERT INTO `t_user` VALUES (20, 't6', '$2a$10$.DBmvE23vYeY16qR/kRPZeZU3wulG2EQPn/r8xEKNKl0/YOmF68Xi', 't6@qq.com', '18100010002', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-06-12 22:53:31', NULL, 2, 5, NULL);
INSERT INTO `t_user` VALUES (21, 't7', '$2a$10$3pQ85MLW37W3EvhiyzqkVuSVlATF6DXgK7ns/FDzUhsP6far8WBhm', 't7@qq.com', '18800010002', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-06-12 23:09:58', NULL, 2, 4, NULL);
INSERT INTO `t_user` VALUES (22, 't8', '$2a$10$btpAN5Xf7VVxI34qFDftl.M8E.3LKPLa2ojl2wc21Xl7irGq.tPgm', 't8@qq.com', '18800010002', b'1', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-06-12 23:39:27', NULL, 2, 3, NULL);
INSERT INTO `t_user` VALUES (24, 'stu1', '$2a$10$HXjVMCWmEck18JvqOT6IeuZwDo/XfVfgTif27DH/1CLpdUTHBrbwS', 'stu1@qq.com', '19900010003', b'0', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-06-30 18:06:49', '10101002', 3, 2, NULL);
INSERT INTO `t_user` VALUES (26, 'stu3', '$2a$10$RjOTW0w0mQIXtXQFxzDPbO3HguIF4L.7qNbdyyYzKFtI4Ksdc34sW', 'stu3@qq.com', '18800010002', b'0', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-07-01 09:31:51', '8000180002', 3, 1, 2);
INSERT INTO `t_user` VALUES (27, 'stu4', '$2a$10$bhmglaF.WL39kygFBLgtYONWSO1Rcw5/WtJeIULAEEC1qdAljPn1O', 'stu4', '18800010004', b'0', '229caa82-17c6-4515-9bd6-edbf10212099.png', '2020-07-01 09:33:33', '8000180004', 3, 9, 3);
INSERT INTO `t_user` VALUES (28, 'stu5', '$2a$10$Jf14s.LlXVzBI1iBHPmUPOtcfPWP3kxM8yOqc8zPycYdAx//CBejS', 'stu5@qq.com', '18800010002', b'1', '1525ae79-887d-4dff-b714-7eafb6240e8b.jpg', '2020-07-13 16:44:50', '11223344', 3, NULL, NULL);
INSERT INTO `t_user` VALUES (30, 'stu6', '$2a$10$ryipfFNTTL1p2yT674g2i.df.SgH2R2yl7p0ZHP4ANTzMbYxswd2C', 'stu6@qq.com', '18100010006', b'0', 'bc7d0bba-24f7-4e18-baed-00070b079bc3.jpg', '2020-07-16 09:53:05', '', 2, NULL, NULL);
INSERT INTO `t_user` VALUES (31, 't9', '$2a$10$PQeGFnam4DCZ9Fgomjxcne7qym0kweTFXJdmmIy8oMsNnVEoVJGpW', 't9@qq.com', '13300010002', b'1', '03c47649-ab10-4aaa-bdc2-c78b1b487f69.jpg', '2020-07-16 09:58:08', '', 2, NULL, NULL);
INSERT INTO `t_user` VALUES (36, 't10', '$2a$10$VCrN6EeQZeZbkLC.1BbiT.BN7oOHy/1vN8J5mf2GwXyEx6sXcIWAe', '377905687@qq.com', '18100010007', b'0', NULL, '2020-07-16 10:36:28', '', 2, NULL, NULL);
INSERT INTO `t_user` VALUES (37, 't11', '$2a$10$A4er7ex3ojpEz/1Ae8VW0uWp/1EbA5jrhDl7YNPuKeBKcy5RDHhvK', '377905687@qq.com', '18100010008', b'0', '8b5ddd72-1b4e-4d93-97e7-7a3be5e4cdce.jpg', '2020-07-16 10:37:48', '', 2, NULL, NULL);
INSERT INTO `t_user` VALUES (38, 't12', '$2a$10$sdxDG4tt84uzvARd27WSdONQ1zNTuPnR/WndxK/oVekdR6VjeBADa', '377905687@qq.com', '18100010016', b'0', 'e4b6b114-0ab8-4f39-bc8b-7bff79f4b67a.jpg', '2020-07-16 10:39:58', '', 2, NULL, NULL);
INSERT INTO `t_user` VALUES (39, 't13', '$2a$10$2fB/LR34Ft0I6yv8BC8sYu0S.Gr1w08vms0frs8Kf4usw/1pkCfJe', '377905687@qq.com', '18100010009', b'0', '352e239e-2078-4a48-ac21-65f0ca32f7e8.jpg', '2020-07-16 10:45:48', '', 2, NULL, NULL);
INSERT INTO `t_user` VALUES (40, 't16', '$2a$10$w/.F4/ABHUALeCMwebIFbOYV3ZEoLOsMuurSHuQjeB13B7dp9nJNS', '377905687@qq.com', '18100010026', b'0', 'effde538-f745-46a7-9e38-28e51c7b5a6b.jpg', '2020-07-16 10:49:40', '', 2, NULL, NULL);

-- ----------------------------
-- Table structure for t_user_role
-- ----------------------------
DROP TABLE IF EXISTS `t_user_role`;
CREATE TABLE `t_user_role`  (
  `id` bigint(2) NOT NULL AUTO_INCREMENT,
  `userid` bigint(2) NULL DEFAULT NULL,
  `roleid` bigint(2) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 23 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_user_role
-- ----------------------------
INSERT INTO `t_user_role` VALUES (1, 1, 1);
INSERT INTO `t_user_role` VALUES (2, 1, 2);
INSERT INTO `t_user_role` VALUES (3, 17, 2);
INSERT INTO `t_user_role` VALUES (14, 18, 2);
INSERT INTO `t_user_role` VALUES (15, 19, 2);
INSERT INTO `t_user_role` VALUES (16, 20, 2);
INSERT INTO `t_user_role` VALUES (17, 21, 2);
INSERT INTO `t_user_role` VALUES (18, 22, 2);
INSERT INTO `t_user_role` VALUES (19, 24, 3);
INSERT INTO `t_user_role` VALUES (20, 27, 3);
INSERT INTO `t_user_role` VALUES (21, 26, 3);
INSERT INTO `t_user_role` VALUES (22, 40, 4);

SET FOREIGN_KEY_CHECKS = 1;

5 张表正好对应 RBAC 模型：t_user（用户）、t_role（角色）、t_permission（权限）、t_user_role（用户角色中间表）、t_role_permission（角色权限中间表），另有 t_menu 存储系统菜单。

4.3 创建 Maven 项目并导入依赖

创建 Maven web 项目，并导入如下的依赖：

<dependencies>
    <!--Servlet JSP -->
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>javax.servlet-api</artifactId>
        <version>4.0.1</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>javax.servlet.jsp</groupId>
        <artifactId>javax.servlet.jsp-api</artifactId>
        <version>2.3.3</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-web</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <!-- MyBatis相关 -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.3</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.4.5</version>
    </dependency>
    <!-- 分页助手 -->
    <dependency>
        <groupId>com.github.pagehelper</groupId>
        <artifactId>pagehelper</artifactId>
        <version>3.7.5</version>
    </dependency>
    <dependency>
        <groupId>com.github.jsqlparser</groupId>
        <artifactId>jsqlparser</artifactId>
        <version>0.9.1</version>
    </dependency>
    <!-- 文件上传相关 -->
    <dependency>
        <groupId>commons-io</groupId>
        <artifactId>commons-io</artifactId>
        <version>2.6</version>
    </dependency>
    <dependency>
        <groupId>commons-fileupload</groupId>
        <artifactId>commons-fileupload</artifactId>
        <version>1.4</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.49</version>
    </dependency>
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>1.1.5</version>
    </dependency>
    <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>1.2.17</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-test</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.13</version>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-aspects</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-tx</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>5.2.6.RELEASE</version>
    </dependency>
    <!-- jackson -->
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-core</artifactId>
        <version>2.9.0</version>
    </dependency>
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-databind</artifactId>
        <version>2.9.0</version>
    </dependency>
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-annotations</artifactId>
        <version>2.9.0</version>
    </dependency>
    <!-- SpringSecurity -->
    <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-core</artifactId>
        <version>5.2.4.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-web</artifactId>
        <version>5.2.4.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-config</artifactId>
        <version>5.2.4.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-test</artifactId>
        <version>5.2.4.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-taglibs</artifactId>
        <version>5.2.4.RELEASE</version>
    </dependency>
    <!-- lombok -->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.22</version>
    </dependency>
</dependencies>

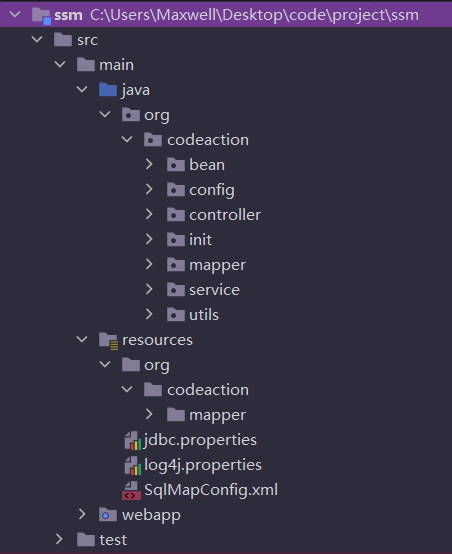

项目结构如下：

项目结构

4.4 创建相关配置文件

4.4.1 jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm_security?useSSL=false
jdbc.username=root
jdbc.password=root

4.4.2 log4j.properties

### direct log messages to stdout ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.err
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

### set log levels - for more verbose logging change 'info' to 'debug' ###

log4j.rootLogger=debug, stdout

4.4.3 MyBatis 核心配置文件

SqlMapConfig.xml：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <!-- 打印查询语句 -->
        <setting name="logImpl" value="LOG4J" />
    </settings>

    <!-- 配置插件 -->
    <plugins>
        <!-- 配置分页插件 -->
        <plugin interceptor="com.github.pagehelper.PageHelper">
            <!-- 配置分页插件方言 -->
            <property name="dialect" value="mysql" />
        </plugin>
    </plugins>
</configuration>

4.5 相关配置类

我们后面的配置尽可能使用 Java 代码配置。

4.5.1 JdbcConfig

/**
 * JDBC配置类
 */
@Configuration
// 引入外部配置文件
@PropertySource("classpath:jdbc.properties")
// 扫描特定包下的mapper
@MapperScan(basePackages = "com.qfedu.mapper")
// 配置事务的注解驱动
@EnableTransactionManagement
public class JdbcConfig {
    @Value("${jdbc.driver}")
    private String driverClassName;
    @Value("${jdbc.url}")
    private String url;
    @Value("${jdbc.username}")
    private String username;
    @Value("${jdbc.password}")
    private String password;

    // 创建数据源
    @Bean("dataSource")
    public DataSource dataSource() {
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setDriverClassName(driverClassName);
        dataSource.setUrl(url);
        dataSource.setUsername(username);
        dataSource.setPassword(password);

        return dataSource;
    }

    // 配置事务平台管理器
    @Bean("transactionManager")
    public DataSourceTransactionManager transactionManager(@Qualifier("dataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    // 创建并配置SqlSessionFactoryBean
    @Bean("sqlSessionFactoryBean")
    public SqlSessionFactoryBean sqlSessionFactoryBean(@Qualifier("dataSource") DataSource dataSource) {
        SqlSessionFactoryBean factoryBean = new SqlSessionFactoryBean();
        factoryBean.setDataSource(dataSource);
        // 配置别名
        factoryBean.setTypeAliasesPackage("com.qfedu.bean");
        // 加载MyBatis的核心配置文件
        factoryBean.setConfigLocation(new ClassPathResource("SqlMapConfig.xml"));

        return factoryBean;
    }
}

4.5.2 RootConfig

// Spring的配置类
@Configuration
@ComponentScan(
        basePackages = "com.qfedu",
        excludeFilters = {
                @ComponentScan.Filter(
                        type = FilterType.ANNOTATION,
                        classes = {Controller.class}
                )
        }
)
@Import(value = JdbcConfig.class)
public class RootConfig {

}

4.5.3 WebConfig

/**
 * SpringMVC配置类
 */
@Configuration
@ComponentScan(
        basePackages = "com.qfedu",
        includeFilters = {
                @ComponentScan.Filter(type = FilterType.ANNOTATION, classes = {Controller.class})
        })
@EnableWebMvc
public class WebConfig implements WebMvcConfigurer {
    // 配置视图解析器
    @Override
    public void configureViewResolvers(ViewResolverRegistry registry) {
        InternalResourceViewResolver resolver = new InternalResourceViewResolver();
        resolver.setPrefix("/");
        resolver.setSuffix(".jsp");

        registry.viewResolver(resolver);
    }

    // 配置静态资源不过滤
    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }

    @Bean("multipartResolver")
    public MultipartResolver commonsMultipartResolver() {
        CommonsMultipartResolver multipartResolver = new CommonsMultipartResolver();
        multipartResolver.setDefaultEncoding("utf-8");
        multipartResolver.setMaxUploadSize(90000000000L);

        return multipartResolver;
    }
}

4.5.4 SecurityConfig

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                .authorizeRequests() // HttpServletRequest请求认证
                // 放行路径，不需要认证
                .antMatchers("/css/**").permitAll()
                // 访问/user/**这个资源需要具有USER角色
                .antMatchers("/user/**").hasRole("USER")
                .anyRequest().authenticated() // 其他任何请求都需要登录认证
                .and()
                .formLogin() // form表单登录方式
                .and()
                .csrf().disable() // 关闭CSRF
                .formLogin().loginPage("/login") // 表示登录时跳转的页面
                .loginProcessingUrl("/form") // form表单登录请求
                .defaultSuccessUrl("/index") // 成功登录后跳转页面
                .failureUrl("/loginError").permitAll(); // 失败错误跳转
    }

    // 基于内存方式登录
    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .passwordEncoder(new BCryptPasswordEncoder())
                .withUser("admin")
                .password(new BCryptPasswordEncoder().encode("123456"))
                .roles("USER");
    }
}

4.5.5 WebAppInitializer

public class WebAppInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[]{RootConfig.class, SecurityConfig.class};
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{WebConfig.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }
}

4.5.6 SecurityWebApplicationInitializer

public class SecurityWebApplicationInitializer extends AbstractSecurityWebApplicationInitializer {
}

4.6 认证

4.6.1 基于内存方式的登录认证

4.6.1.1 相关页面

登录页 login.jsp：

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <meta charset="UTF-8"/>
    <title>home</title>
</head>
<body>
<form class="form-signin" action="/form" method="post">
    <h2 class="form-signin-heading">用户登录</h2>
    <table>
        <tr>
            <td>用户名:</td>
            <td><input type="text" name="username" class="form-control" placeholder="请输入用户名"/></td>
        </tr>
        <tr>
            <td>密码:</td>
            <td><input type="password" name="password" class="form-control" placeholder="请输入密码"/></td>
        </tr>
        <tr>
            <td colspan="2">
                <button type="submit" class="btn btn-lg btn-primary btn-block">登录</button>
            </td>
        </tr>
    </table>
</form>
</body>
</html>

创建一个登录成功页面 index.jsp：

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
    恭喜登录成功
</body>
</html>

创建一个登录失败页面 error.jsp：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
    登录失败
</body>
</html>
4.6.1.2 LoginController
@Controller
public class LoginController {
    @RequestMapping("/login")
    public String login() {
        return "login";
    }

    @RequestMapping("/index")
    public String index() {
        return "index";
    }

    @RequestMapping("/loginError")
    public String loginError() {
        return "error";
    }
}
4.6.1.3 测试

访问 http://localhost:8080/index，会跳转到登录页，只有登录之后才能访问该路径。

4.6.2 基于数据库的登录认证

以下操作和之前学习的登录方式完全不同，如果使用 SpringSecurity 进行数据库认证，必须按照下面的操作进行。这是一种规范，也是一种约定。

4.6.2.1 创建实体类
// 用户实体类
@Data
public class User {
    private Long id;
    private String username;
    private String password;
    private String email;
    private String tel;
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    private Date createTime;
    private Boolean sex;
    private String headImg;
    // type=1 是管理员，type=2 是老师
    private Integer type;
    // 用户对应的角色集合
    private List<Role> roles = new ArrayList<>();
}

// 角色实体类
@Data
public class Role {
    private Long id;
    private String name;
    private String sn;
    private String desc;
    private List<Permission> permissions = new ArrayList<>();
}

// 权限实体类
@Data
public class Permission {
    private Long id;
    private String name;
    private String title;
    private Long pid;
    private Long menuid;
}
4.6.2.2 创建 UserMapper 和 UserService

UserMapper 接口：

public interface UserMapper {
    User findUserByUserName(String username);
}

UserMapper 映射配置文件：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.qfedu.mapper.UserMapper">
    <select id="findUserByUserName" resultType="user">
        select * from t_user where username=#{username}
    </select>
</mapper>

UserService 接口：

public interface UserService {
    User findUserByUserName(String username);
}

UserService 实现类：

@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private UserMapper userMapper;

    @Override
    public User findUserByUserName(String username) {
        return userMapper.findUserByUserName(username);
    }
}
4.6.2.3 封装用户类 UserSecurity

该类主要用于登录之后存储用户的信息，需要是 UserDetails 接口的实现类。

org.springframework.security.core.userdetails.User 类是 UserDetails 接口的实现类，我们只需要继承该类即可：

// 登录用户封装
public class UserSecurity extends org.springframework.security.core.userdetails.User {
    private User loginUser;

    public UserSecurity(User user, Set<GrantedAuthority> authorities) {
        super(user.getUsername(), user.getPassword(), true, true, true, true, authorities);
        this.loginUser = user;
    }

    public User getLoginUser() {
        return loginUser;
    }

    public void setLoginUser(User loginUser) {
        this.loginUser = loginUser;
    }
}
4.6.2.4 添加登录认证处理类 UserDetailsServiceImpl
@Component
public class UserDetailsServiceImpl implements UserDetailsService {

    @Autowired
    private UserService userService;

    // 查询用户和角色
    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        // 根据用户名查询出用户
        User user = userService.findUserByUserName(username);
        if (user != null) {
            // 构建权限集合：ROLE_角色 + 权限
            HashSet<GrantedAuthority> authorities = new HashSet<>();
            authorities.add(new SimpleGrantedAuthority("ROLE_管理员"));
            return new UserSecurity(user, authorities);
        } else {
            return null;
        }
    }
}
4.6.2.5 改造 SecurityConfig

把基于内存的认证注释掉，添加基于数据库的登录方式：

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Autowired
    private UserDetailsService userDetailsService;

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests() // HttpServletRequest请求认证
                // 放行路径，不需要认证
                .antMatchers("/css/**").permitAll()
                // 访问/user/**这个资源需要具有USER角色
                .antMatchers("/user/**").hasRole("USER")
                .anyRequest().authenticated() // 其他任何请求都需要登录认证
                .and()
                .formLogin() // form表单登录方式
                .and()
                .csrf().disable() // 关闭CSRF
                .formLogin().loginPage("/login") // 表示登录时跳转的页面
                .loginProcessingUrl("/form") // form表单登录请求
                .defaultSuccessUrl("/index") // 成功登录后跳转页面
                .failureUrl("/loginError").permitAll(); // 失败错误跳转
    }

    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
        // 基于数据库的认证
        auth.userDetailsService(userDetailsService)
                .passwordEncoder(new BCryptPasswordEncoder());
    }
}
4.6.2.6 测试

访问 http://localhost:8080/index，会跳转到登录页，只有登录之后才能访问该路径。

这次登录，可以使用数据库中存在的用户名和密码了。

4.7 授权

权限控制：说白了就是用户有特定权限或者有特定角色，就可以操作内容；如果没有特定权限或者没有特定角色，就不能操作内容。

实现的步骤：

  1. 首先把该用户存储在数据库的权限和角色查询出来，交给 SpringSecurity 框架去管理；
  2. 该框架在发现你操作某个内容的时候，就会把你的权限拿出来和你操作的内容进行对比：如果存在就可以操作，如果不存在就不能操作。

4.7.1 添加相关 Mapper 和 Service 层

RoleMapper 接口：

public interface RoleMapper {
    // 根据用户id查询对应的角色
    List<Role> listRoleByUser(Long uid);
}

RoleMapper 映射配置文件：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.qfedu.mapper.RoleMapper">
    <select id="listRoleByUser" resultType="role">
        select
            r.*
        from
            t_user u, t_user_role ur, t_role r
        where
            u.id=ur.userid and ur.roleid=r.id and u.id=#{uid}
    </select>
</mapper>

RoleService 接口：

public interface RoleService {
    List<Role> listRoleByUser(Long uid);
}

RoleService 实现类：

@Service
public class RoleServiceImpl implements RoleService {
    @Autowired
    private RoleMapper roleMapper;

    @Override
    public List<Role> listRoleByUser(Long uid) {
        return roleMapper.listRoleByUser(uid);
    }
}

PermissionMapper 接口：

public interface PermissionMapper {
    List<Permission> listPermissionByUser(Long uid);
}

PermissionMapper 映射配置文件：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.qfedu.mapper.PermissionMapper">
    <select id="listPermissionByUser" resultType="permission">
        select
            distinct p.*
        from
            t_user u, t_user_role ur, t_role r, t_role_permission rp, t_permission p
        where
            u.id=ur.userid and ur.roleid=r.id and r.id=rp.roleid and rp.permissionid=p.id and u.id=#{uid}
    </select>
</mapper>

PermissionService 接口：

public interface PermissionService {
    List<Permission> listPermissionByUser(Long uid);
}

PermissionService 实现类：

@Service
public class PermissionServiceImpl implements PermissionService {
    @Autowired
    private PermissionMapper permissionMapper;

    @Override
    public List<Permission> listPermissionByUser(Long uid) {
        return permissionMapper.listPermissionByUser(uid);
    }
}

4.7.2 添加对应的权限获取代码

改造 UserDetailsServiceImpl，把用户的角色和权限都查询出来交给 SpringSecurity 管理：

@Service
public class UserDetailsServiceImpl implements UserDetailsService {
    @Autowired
    private UserMapper userMapper;
    @Autowired
    private RoleMapper roleMapper;
    @Autowired
    private PermissionMapper permissionMapper;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        User user = userMapper.findUserByUserName(username);
        if (user != null) {
            Set<GrantedAuthority> authoritySet = new HashSet<>();
            // 获取该登录用户所有的角色
            List<Role> roles = roleMapper.listRoleByUser(user.getId());
            for (Role role : roles) {
                authoritySet.add(new SimpleGrantedAuthority("ROLE_" + role.getName()));
            }

            // 获取该登录用户所有的权限
            List<Permission> permissions = permissionMapper.listPermissionByUser(user.getId());
            for (Permission permission : permissions) {
                authoritySet.add(new SimpleGrantedAuthority(permission.getName()));
            }
            // 根据该用户的信息，将查询到的权限和角色交给SpringSecurity去管理
            return new UserSecurity(user, authoritySet);
        }
        return null;
    }
}

注

角色需要加前缀 ROLE_ 再放入权限集合中，因为 hasRole() 在比对时会自动补上 ROLE_ 前缀；而权限直接使用原始名称，配合 hasAuthority() 使用。

4.7.3 调整 SecurityConfig 的配置

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true) // 开启细粒度控制
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Autowired
    private UserDetailsService userDetailsService;

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests() // HttpServletRequest请求认证
                // 放行路径，不需要认证
                .antMatchers("/css/**").permitAll()
                //// 访问/user/**这个资源需要具有USER角色
                //.antMatchers("/user/**").hasRole("USER")
                .anyRequest().authenticated() // 其他任何请求都需要登录认证
                .and()
                .formLogin() // form表单登录方式
                .and()
                .csrf().disable() // 关闭CSRF
                .formLogin().loginPage("/login") // 表示登录时跳转的页面
                .loginProcessingUrl("/form") // form表单登录请求
                .defaultSuccessUrl("/index") // 成功登录后跳转页面
                .failureUrl("/loginError").permitAll(); // 失败错误跳转

        // 退出登录处理
        http.logout().logoutUrl("/logout").logoutSuccessUrl("/login").invalidateHttpSession(true);

        // 权限不足时的处理：ajax请求返回JSON，普通请求转发到错误页
        http.exceptionHandling().accessDeniedHandler((req, resp, e) -> {
            String header = req.getHeader("X-Requested-With");
            if ("XMLHttpRequest".equals(header)) {
                resp.getWriter().println("{\"errorMsg\":\"不好意思，您没有权限访问\"}");
            } else {
                req.getRequestDispatcher("/error403").forward(req, resp);
            }
        });
    }

    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
        // 基于数据库的认证
        auth.userDetailsService(userDetailsService)
                .passwordEncoder(new BCryptPasswordEncoder());
    }
}

4.7.4 修改 UserMapper 和 UserService

UserMapper 接口：

public interface UserMapper {
    User findUserByUserName(String username);
    List<User> findAll();
}

UserMapper 映射配置文件：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.qfedu.mapper.UserMapper">
    <select id="findUserByUserName" resultType="user">
        select * from t_user where username=#{username}
    </select>
    <select id="findAll" resultType="user">
        select * from t_user
    </select>
</mapper>

UserService 接口：

public interface UserService {
    User findUserByUserName(String username);
    List<User> findAll();
}

UserService 实现类：

@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private UserMapper userMapper;

    @Override
    public User findUserByUserName(String username) {
        return userMapper.findUserByUserName(username);
    }

    @Override
    public List<User> findAll() {
        return userMapper.findAll();
    }
}

4.7.5 增加 UserController

在方法上使用 @PreAuthorize 进行细粒度的权限控制：

@Controller
@RequestMapping("/user")
public class UserController {
    @Autowired
    private UserService userService;

    @PreAuthorize("hasRole('管理员')") // 拥有管理员角色才能访问
    @RequestMapping("/findAll")
    @ResponseBody
    public List<User> findAll() {
        return userService.findAll();
    }
}

4.7.6 测试

使用 admin 登录后，可以访问 http://localhost:8080/user/findAll 接口；而使用 t1 登录则不能访问，因为没有管理员角色。

5. 本章小结

  • 权限系统的理论基础是 RBAC：用户、角色、权限、资源四类关键对象，用户与角色、角色与权限之间都是多对多关系，各用一张中间表维护；
  • SpringSecurity 的两大核心是认证（Authentication，你是谁）与授权（Authorization，你能做什么）；
  • 认证方式从易到难：基于内存（inMemoryAuthentication）适合演示，实际开发基于数据库，核心是提供 UserDetailsService 实现，把查到的用户封装成 UserDetails 交给框架；
  • 授权通过 @EnableGlobalMethodSecurity(prePostEnabled = true) 开启，用 @PreAuthorize 在方法上声明所需的角色或权限；
  • 角色放入权限集合时要加 ROLE_ 前缀，与 hasRole() 的自动补全机制对应。
